1) As an accessory at the interface of the ventilation pipe, the corner code is pressed with a thicker galvanized sheet, which can play a stable role.
2) The surface of the corner code has strong oxidation resistance, wear resistance and corrosion resistance.
3) The corner code is easy to operate and easy to install.

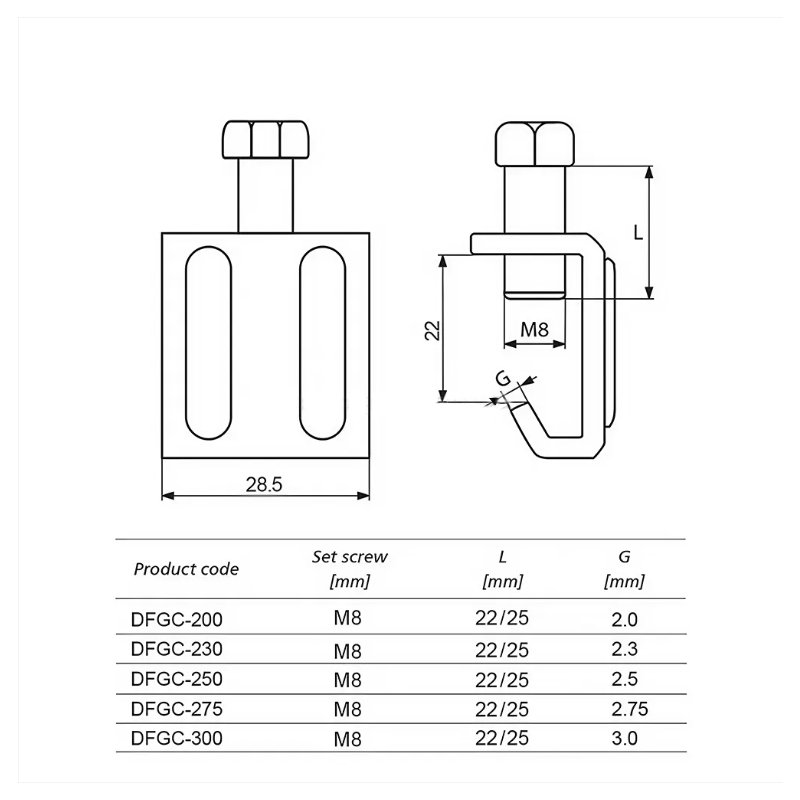

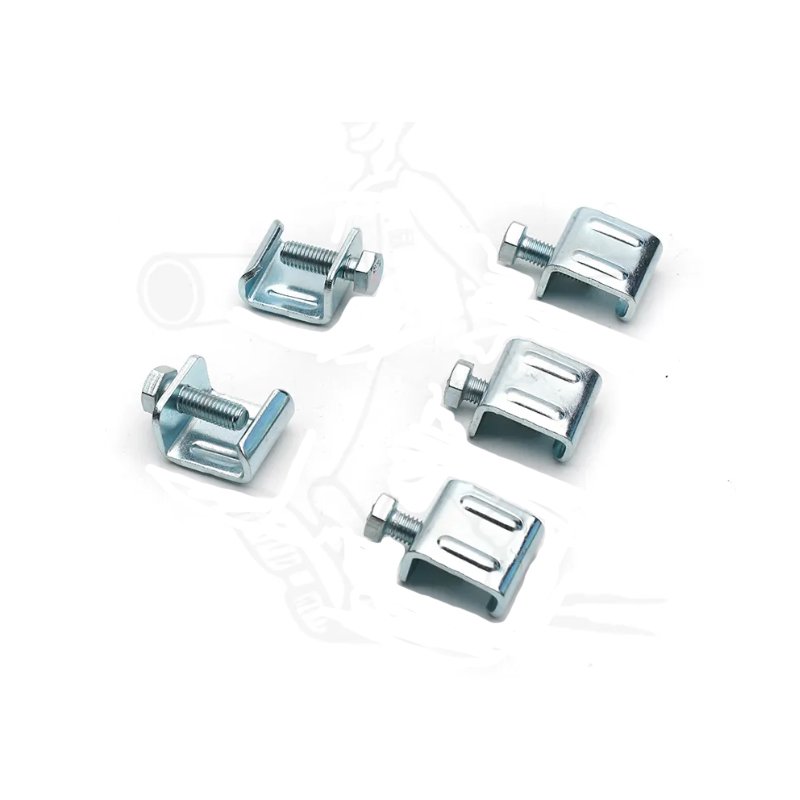

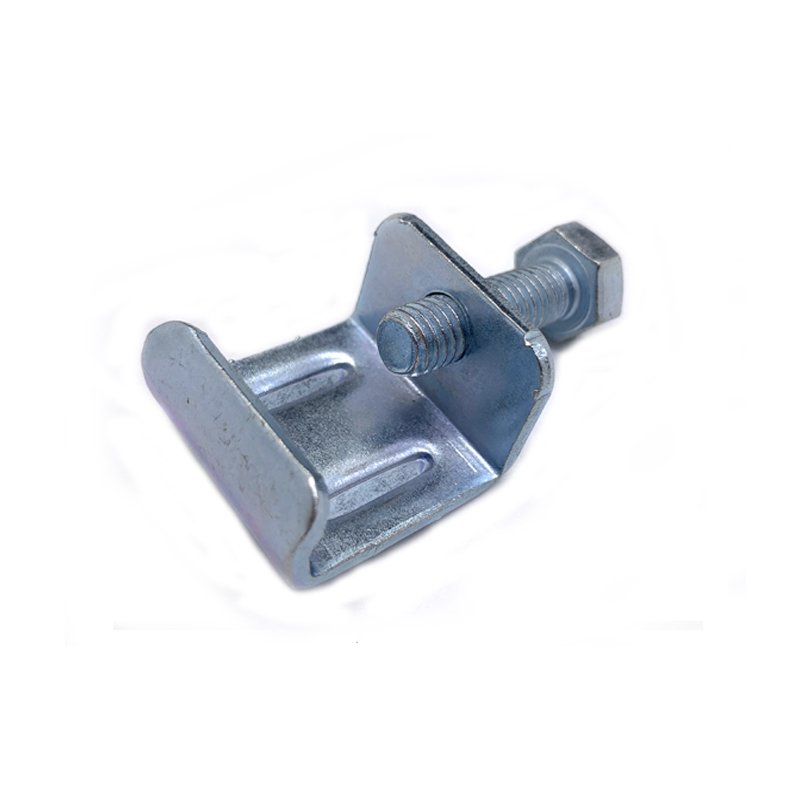

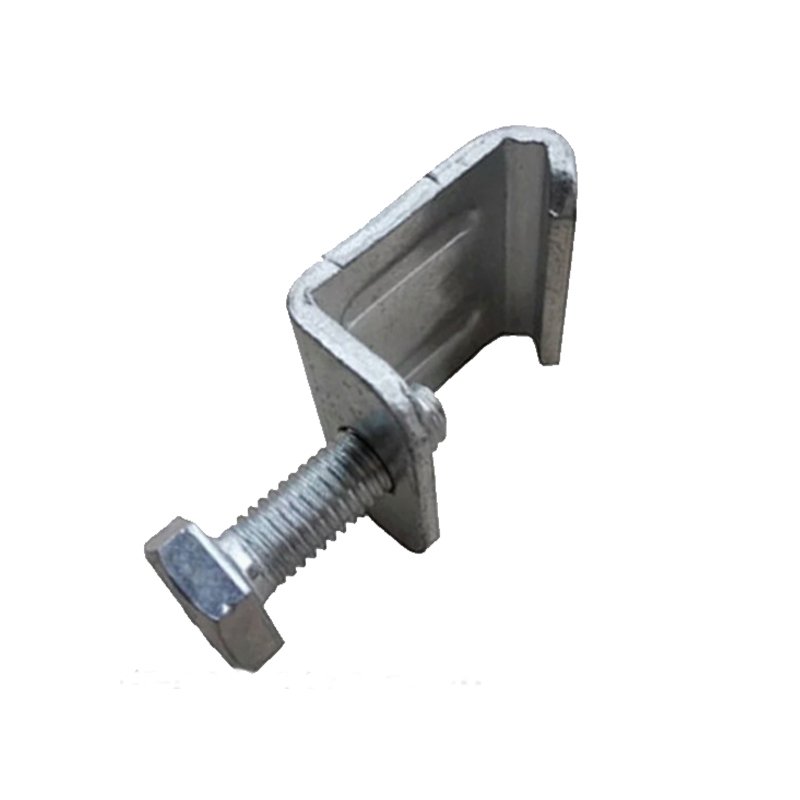

| Product Name: | Duct Flange Clamps |
| Standard: | GB/T,ASTA,DIN |
| Place of Origin: | Hebei, China |
| Application: | To be used for ductwork |
| Product Features: | Duct Flange Clamp is used to clamp Doby frames together on larger ducts when the corner bolts alone are not sufficient. Not easy to deform. ingenuity production, long practical life, health and environmental protection.
1. Fixing flange in Ventilation Duct for HVAC systems. 2. Flange G-clamp with bolt which is used for rectangular duct system. 3. Relative duct fittings:duct flange, duct cleat, TDF corner, TDC corner, gasket, etc. |
| Surface Treatment: | Zinc coated |
| Material: | Carbon Steel, Stainless Steel ,galvanized iron |
| Size: | M8*25, M8*30 or as your request |
| Thickness: | 0.8-2.5mm or as your request |
