C-channel

Product Description

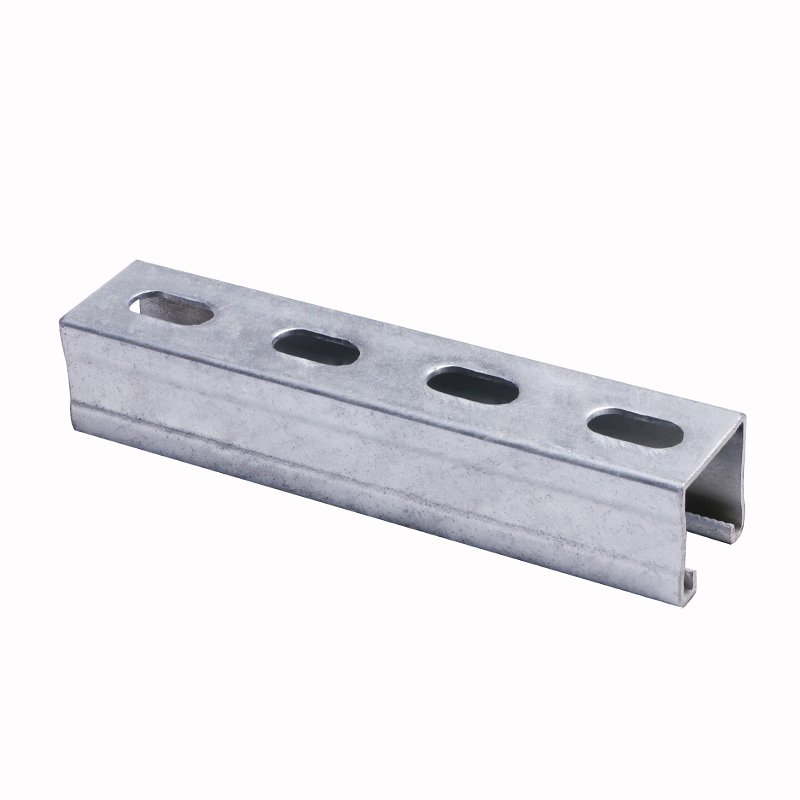

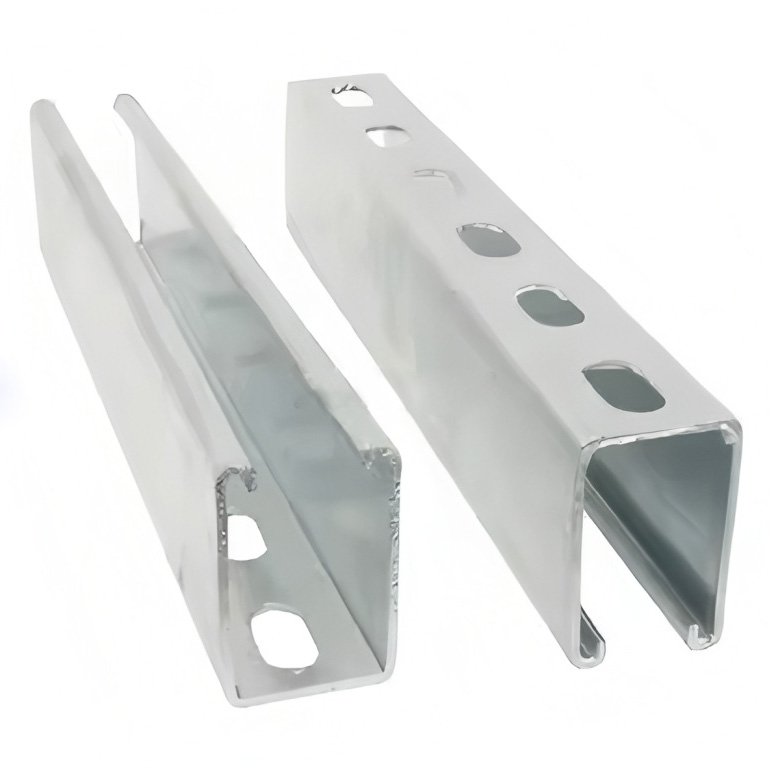

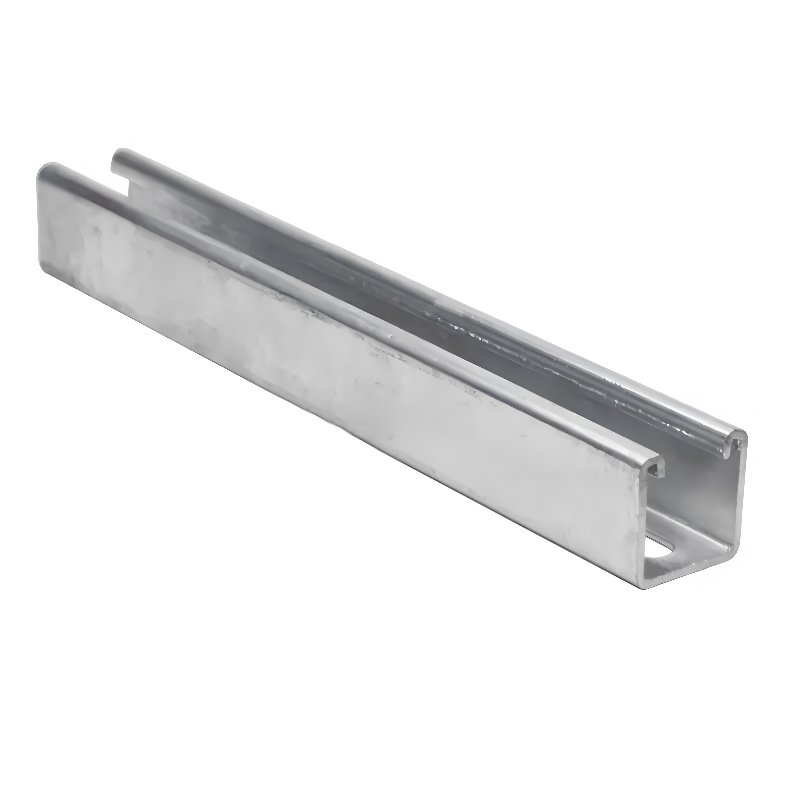

Stainless Steel C Type Steel , or called Strut Channel Unistrut Strut C Channel, standard can be GB/T, ASTA,DIN,is widely used in steel structure building purlins, wall beams, but also can be combined into lightweight roof truss, bracket and other building components. In addition, it can also be used for column, beam and arm in mechanical light industry manufacturing etc. Material:Aluminum/steel Application:Solar Panel Mount Certificate:ISO9001:2015 Packing:Cartons+Pallets,or according to customer requirements delivery time:Busy season:15-30days,Slack season:10-15days type:steel channel

Product Show

Dimensions Of C Type Steel

‌The dimensions of C-shaped steel are usually determined by three parameters: height, width and thickness. Common C-shaped steel specifications include but are not limited to:

Height: The height of C-shaped steel generally ranges from 100mm to 300mm, and the specific height depends on different uses and load-bearing capacity.

Width: The width of C-shaped steel generally ranges from 60mm to 150mm, and the specific width also depends on different uses and load-bearing capacity.

Thickness: The thickness of C-shaped steel generally ranges from 0.5mm to 3.0mm, and the specific thickness depends on different uses and load-bearing capacity.

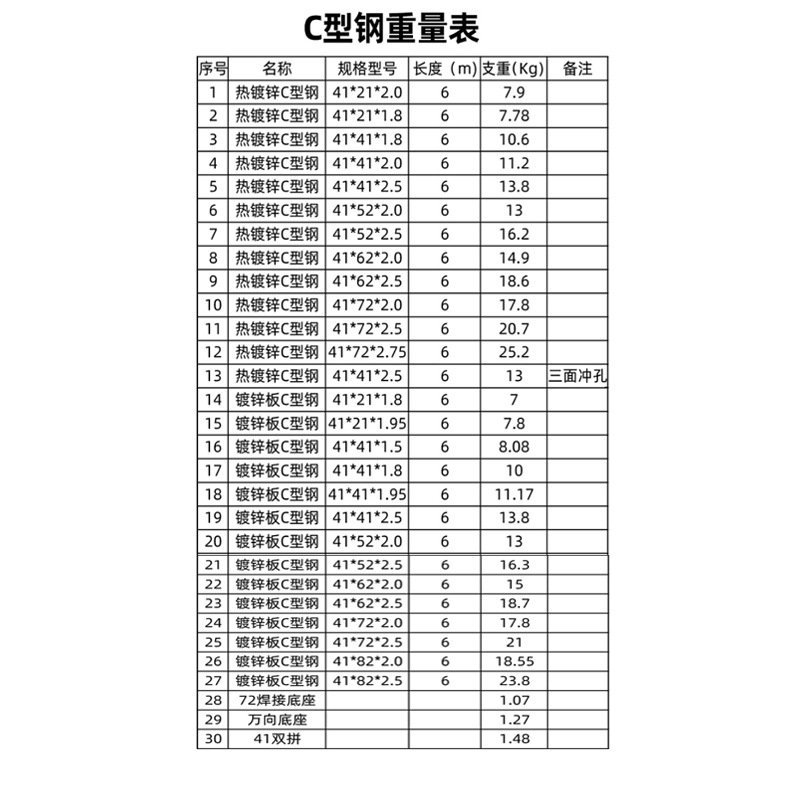

In addition, the specifications of C-shaped steel can be further subdivided into specific sizes, for example:

  • Length Width Thickness
    41 21 0.5~2.5
    41 41 0.5~2.5
    41 52 2.0~3.0
    41 62 2.0~3.0
    41 72 2.0~3.0
    41 82 2.0~3.0
    Finishes: Electro-galvanised Hot-dip galvanised Zinc-aluminium-magnesium
    Material: stainless steel carbon steel
